Full-Scale Interior Mock-up

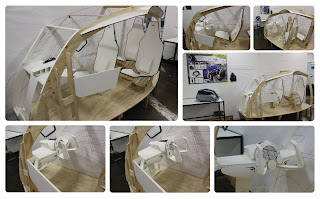

Constructed of plywood and Foam Core, this full-scale mock-up was built to explore the ergonomics, proportions, ingress/egress, etc, for the passengers of this interior. It was built to hold the weight of the passengers so that the design could be properly studied and developed. This collage of images shows some of the functional parts of the interior such as the fold-up seat pans and the slide out I.P. and pedal assembly. Additional functions and details were included in the renderings and sketches.
